Galvanized pressed steel modular panel water tank

1. Product Specifications

Below are the standard panel and tank specifications for the galvanized pressed steel modular panel water tank. Values reflect the supplied product data and should be used for planning and procurement.

2. Product Description and Benefits

Overview

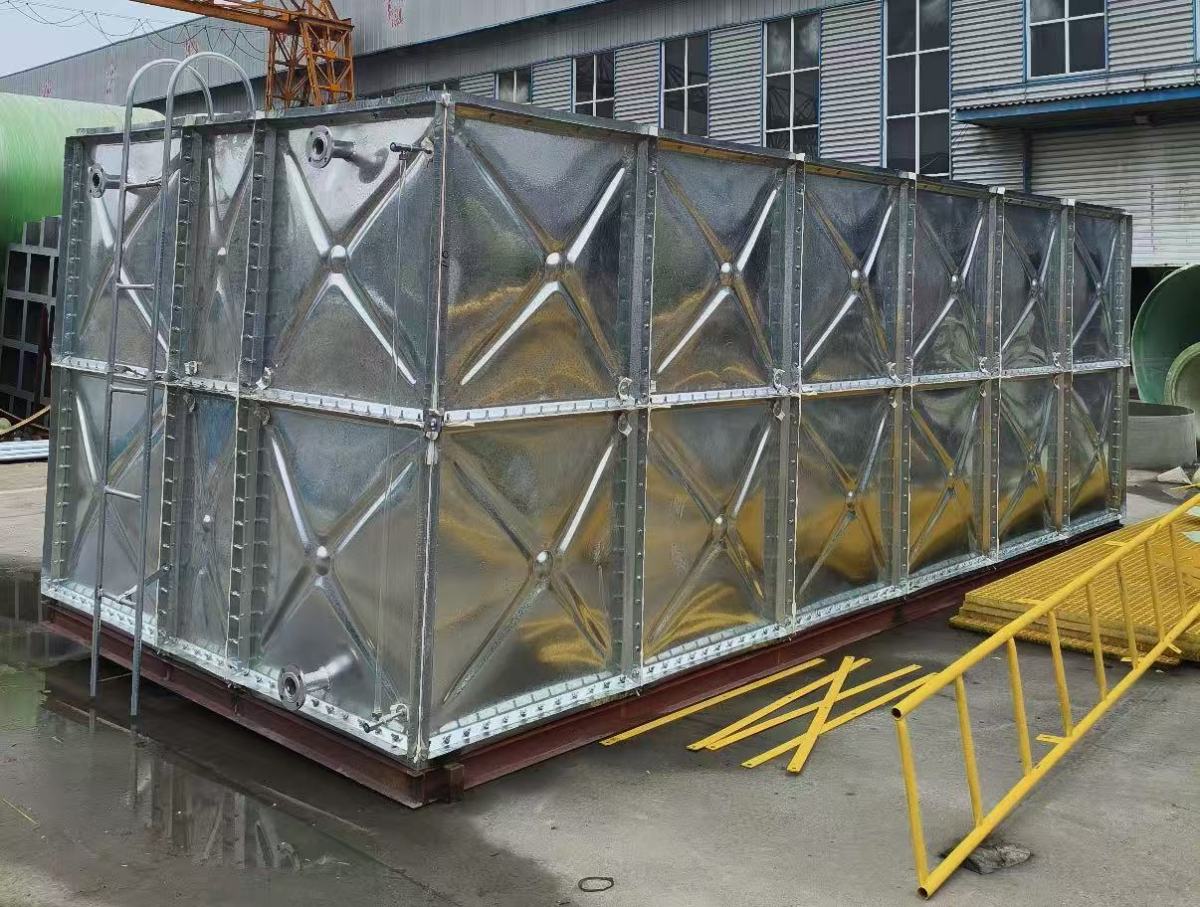

The galvanized pressed steel modular panel water tank is engineered from Q235 pressed steel with a hot dip galvanized (HDG) zinc layer typically around 90 μm. This hot dip galvanized steel water tank system is modular, allowing flexible panel arrangement and custom capacities ranging from 0.125 m³ to 5,000 m³. Configurations commonly use 500 x 500 mm, 1000 x 500 mm, 1000 x 1000 mm, and 1220 x 1220 mm panels to meet practical installation and transport requirements.

Design and Components

The assembly consists of four principal groups of components:

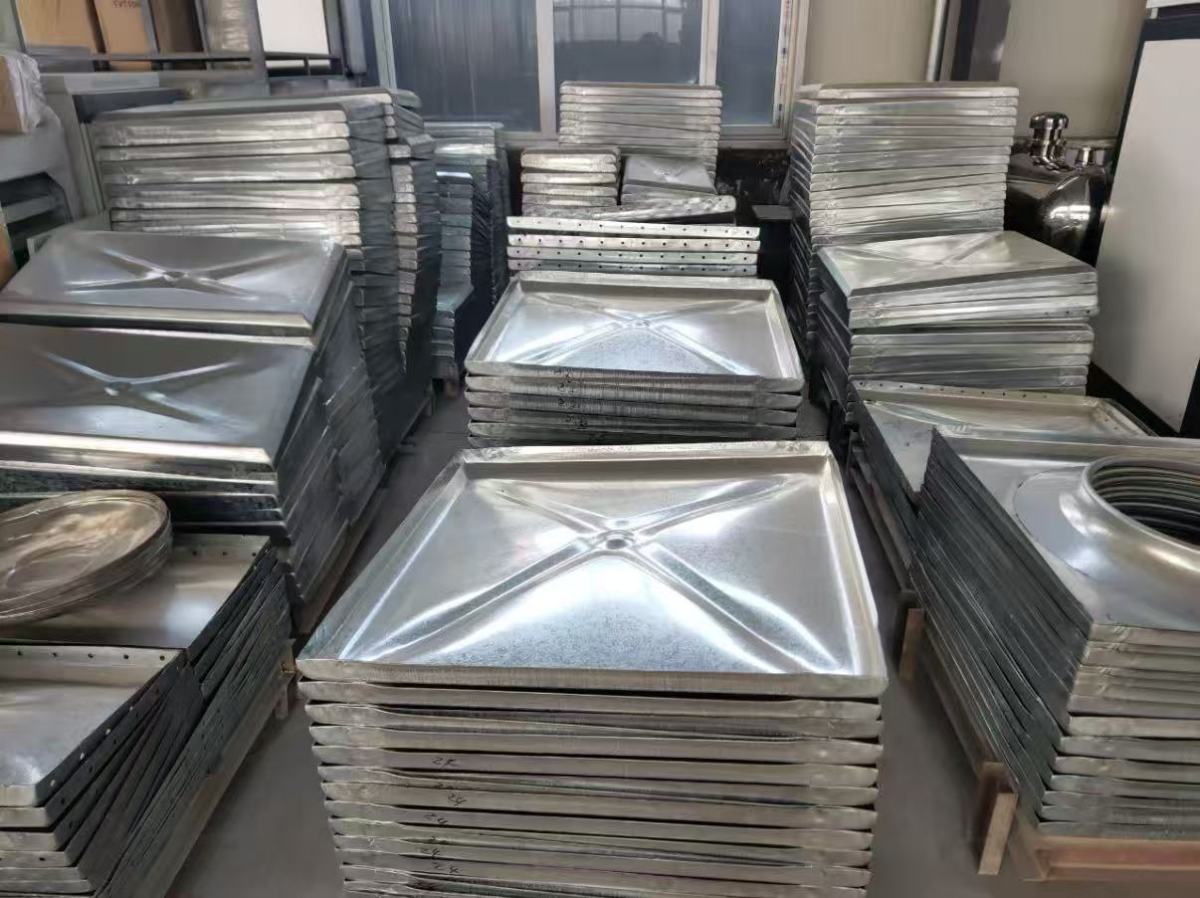

1. Panels — bottom, wall, roof panels and manhole panels formed by precision pressing.
2. Internal fittings — internal ladders, tie-rod assemblies, supports, flanges and sealing rubber.
3. External fittings — exterior ladders, angle irons, tie-piece boards, bolts and nuts for robust fastening.

4. U-steel base — available in painted, hot-dip galvanized or stainless steel finishes depending on site conditions.




5.

Key Advantages

• Superior corrosion protection: the hot-dip galvanizing zinc layer forms a durable barrier that prevents rust and extends service life — typically providing at least a decade of effective protection under normal conditions.
• Strength and load capacity: Q235 pressed steel panels deliver structural strength to resist hydrostatic pressure and external loads, making the tanks suitable for aboveground and underground installations.
• Modularity and cost-effectiveness: a wide array of panel sizes and thicknesses permits optimized designs that reduce material waste and transportation costs while scaling capacity to project needs.
• Low maintenance: HDG surfaces reduce the frequency and cost of routine upkeep; inspections and occasional replacement of seals or bolts are typically sufficient.
• Customizable: tanks can be delivered with various access, piping, and mounting options to integrate with filtration, circulation or process systems.

Typical Applications

Because of their durability and adaptable design, these hot dip galvanized steel water tanks are widely used for:

• Municipal and industrial water storage — including rainwater harvesting and treated water storage.
• Construction site and firefighting reserves — temporary or permanent supply for emergency response.
• Agricultural operations — irrigation, livestock watering and aquaculture (fishing, shrimp tanks).
• Water circulation systems and plant process storage — compatible with filtration and recirculation equipment.
• Public facilities — parks, institutions, restaurants and mining enterprises needing reclaimed water handling and fire-control reserves.

Installation, Use and Maintenance Notes

Installation should follow manufacturer assembly instructions, ensuring correct sealant application between panels and proper torque for fasteners. Standard practice limits tank height to 4 meters for typical panel assemblies; however, length and width can be scaled to project needs. For underground use, choose the appropriate U-steel base treatment and confirm soil, groundwater and loading conditions with a qualified engineer. Routine inspections should focus on seals, fastener integrity, and any local coating damage; repair or local touch-up of the zinc layer and sealants will preserve longevity.

Who benefits from this product?

Owners and operators in municipal utilities, construction, agriculture, aquaculture, and industrial processing will find these tanks particularly valuable due to their balance of strength, corrosion resistance and scalable cost. Engineering consultants and site contractors benefit from modularity that simplifies logistics and on-site installation.

Compliance and selection guidance

Select panel thickness and base treatment consistent with operating height, fluid type (e.g., sea water may require additional considerations), and local regulations. For buried installations, consult geotechnical and structural guidance to confirm suitability of hot dip galvanized surfaces and base options.

In summary, the galvanized pressed steel modular panel water tank is a pragmatic solution where durability, flexibility and lifecycle cost control are priorities. Its hot dip galvanized steel construction provides a resilient barrier to corrosion while delivering the structural performance needed in demanding storage applications.
