Bolted Type Stainless Steel Modular Panel Water Tank

Product Overview

The bolted type stainless steel modular panel water tank is a purpose-built system designed to store potable and process water reliably while prioritizing hygiene, durability and flexibility. Constructed from stainless steel panels that are bolted together on-site, this modular approach enables straightforward assembly, disassembly and reconfiguration to meet changing capacity and site constraints. The system balances structural integrity with ease of transport and maintenance, making it suitable for permanent installations as well as temporary or mobile applications.

Core Components

The bolted modular tank comprises four primary groups of components, each engineered to deliver robust performance and safe water storage:

• Panels: Bottom panels, wall panels, roof panels and manholes form the primary containment. Panels are precision stamped and polished to minimize crevices where contaminants could accumulate.

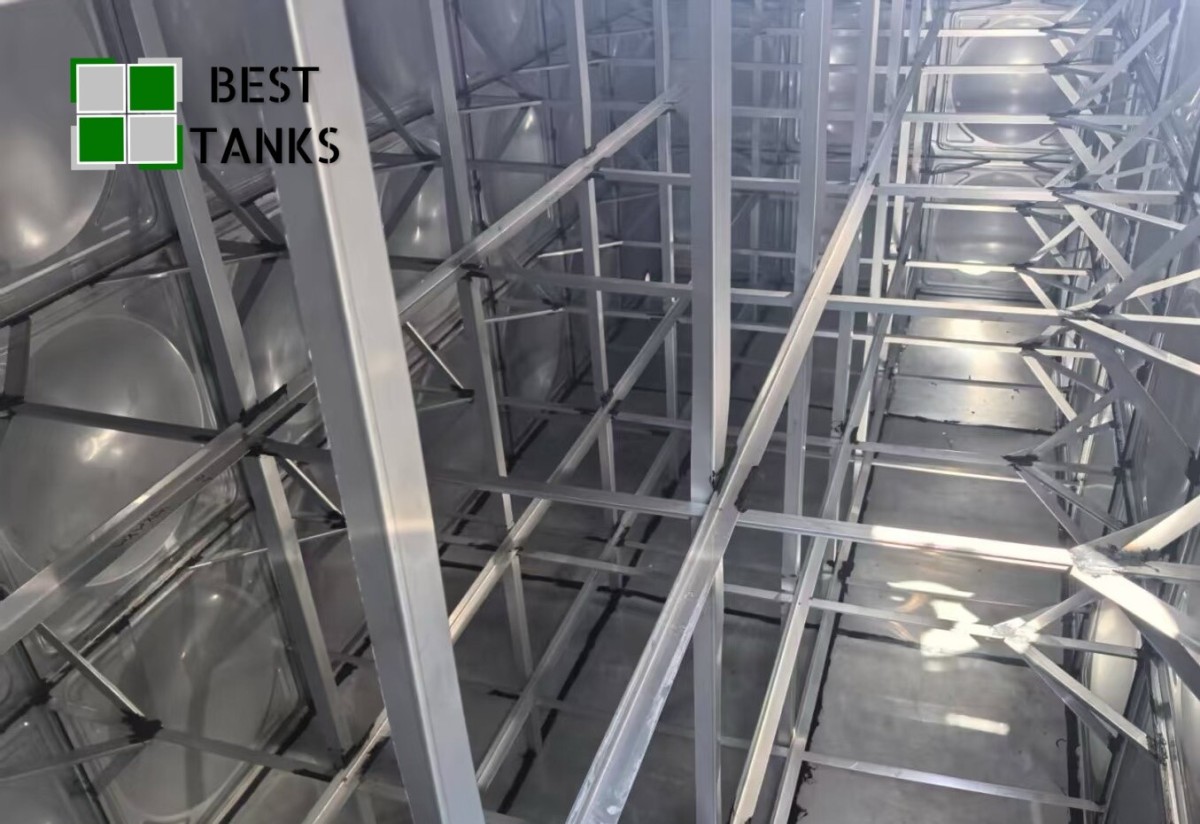

• Internal parts: Internal ladders, tiepiece rods, supports, flanges and food-grade rubber seals ensure internal access, structural stability and leak-tight joints.
• External parts: External ladders, angle iron, tiepiece boards and corrosion-resistant bolts and nuts provide safe external access and reliable panel connections.

• U-steel base: The tank sits on a U-steel frame that can be supplied painted, hot-dip galvanized or in stainless steel to suit site conditions and lifecycle expectations.




•

•

Materials and Panel Advantages

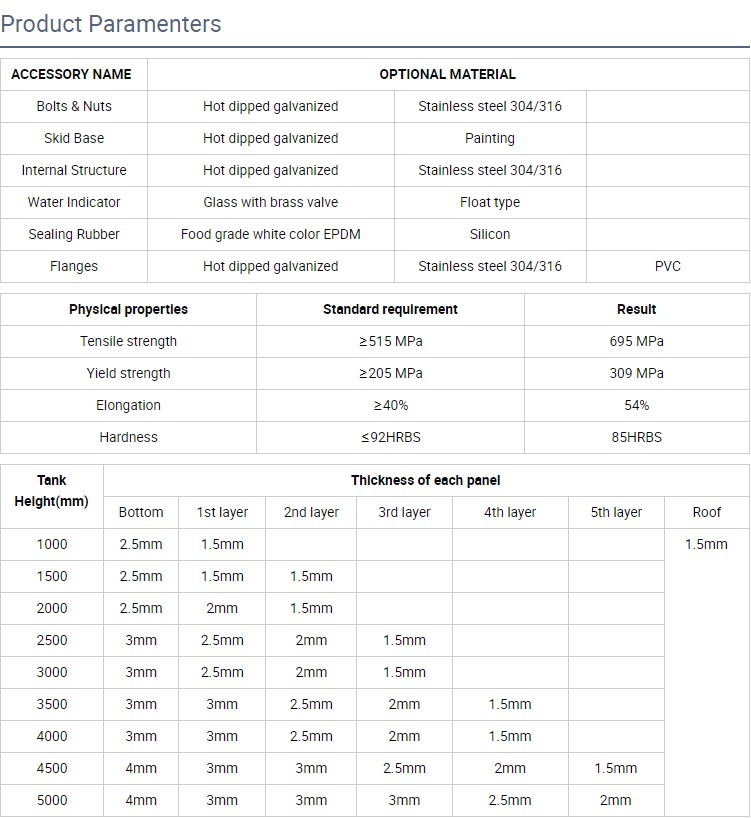

Panels are typically fabricated from 304 or 316 stainless steel grades chosen for their corrosion resistance and suitability for potable water. Key advantages of this panel construction include:

1. Superior raw material handling: Stamped and polished corner plates reduce dirt accumulation and simplify cleaning, maintaining water quality over time.
2. Improved pressure distribution: High-strength punching plates and uniform stainless steel tension across panels deliver even structural loading and enhanced safety under hydrostatic pressure.
3. Ease of installation: Standardized, stamped panels allow flexible on-site combination without heavy lifting or complex fabrication, shortening construction time.
4. Long-term stability: Mechanically pressed veneer and precision assembly yield a robust tank with an expected service life that can exceed two decades under normal operating conditions.

Why Choose Bolted Modular Construction

Bolted modular construction delivers practical advantages over one-piece welded tanks in scenarios that require rapid deployment, relocation or incremental capacity additions. The modular format allows project teams to tailor volume and footprint on-site without specialized fabrication facilities, and individual panels can be replaced or upgraded with minimal disruption.

Functional Benefits and Performance

This type of stainless steel water tank provides a combination of performance attributes suited to potable and process water needs:

• Hygiene and water quality: Stainless steel is non-reactive and resists bacterial adhesion when surfaces are properly finished, helping to preserve taste and safety of drinking water.
• Corrosion resistance: 304 and 316 grades resist oxidation and chemical attack, extending the lifecycle of the tank in diverse environmental conditions.
• Customizability: Modular panels can be combined in multiple configurations to accommodate site constraints and capacity targets without bespoke manufacturing.
• Serviceability: Bolted joints and accessible internal components simplify inspection, cleaning and maintenance routines.
• Sustainability: Stainless steel is fully recyclable; at the end of service life, material recovery reduces environmental impact compared with composite alternatives.

Common Applications

Bolted modular stainless steel water tanks are used across sectors where reliable, hygienic water storage is required. Typical use cases include:

• Potable water storage for residential complexes, hotels and commercial facilities.
• Agricultural irrigation reservoirs where modular capacity and repositioning are beneficial.
• Septic and sewage holding where corrosion resistance and ease of cleaning are necessary.
• Process and distillation tanks for light industrial applications.
• Fire reserve storage, swimming pool balance tanks and cooling tower feedwater tanks.
• Hot water storage, rainwater harvesting and well water systems.
• Reverse-osmosis product water storage and low/high conductivity water tanks.

Installation, Operation and Maintenance

Correct installation and routine maintenance are essential to realize the full lifespan and hygienic performance of a stainless steel water tank. Recommended practices include:

1. Ensure a level and stable foundation, compatible with the specified U-steel base treatment (painted, galvanized or stainless).
2. Follow manufacturer torque and gasket specifications for bolted joints to maintain structural integrity and leak-tightness.
3. Schedule periodic internal inspections and cleaning to remove sediment and verify seals, ladders and support components.
4. Monitor water treatment and disinfection protocols appropriate to the application to protect public health and system components.
5. Retain spare panels, seal kits and fasteners for timely on-site repairs to reduce downtime.

Who Benefits

This solution is well-suited to a broad set of stakeholders including building owners, facility managers, agricultural operators, municipal utilities and industrial process engineers. Decision-makers value the combination of hygienic storage, modular flexibility and low lifecycle costs that a bolted stainless steel water tank delivers.

Environmental and Regulatory Considerations

Stainless steel offers intrinsic environmental benefits through recyclability and long service life, which reduces material replacement and waste generation. When specifying a stainless steel water tank for potable use, ensure the selected materials and finishes meet local potable water regulations and any required hygiene certifications. Proper surface finishing and sealing are critical to meet regulatory water quality standards.

Conclusion

The bolted type stainless steel modular panel water tank provides a practical, durable and hygienic option for a wide range of water storage needs. Its modularity, combined with the corrosion resistance of stainless steel, delivers a flexible platform for potable and process water systems that demands lower maintenance and offers long-term value. For projects requiring adaptability, reliable water quality and responsible material choices, this bolted modular solution represents a compelling choice.
