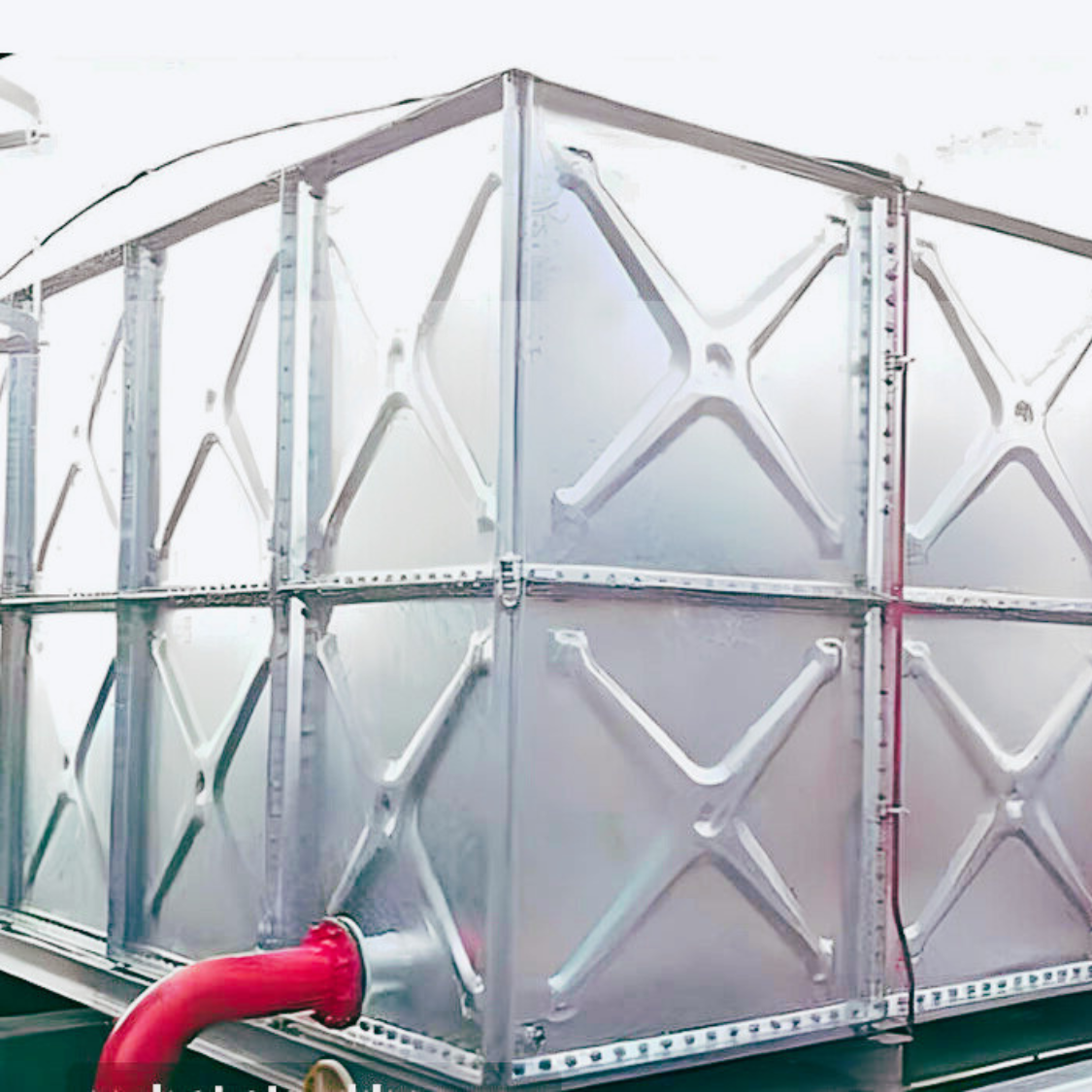

Galvanized Steel Water Storage Tank

1. Product Parameters

Panel Thickness by Tank Height

2. Product Detailed Description & Introduction

Overview

The Galvanized Steel Water Storage Tank is a sectional, pressed-steel, hot-dip galvanized storage solution engineered for flexibility, reliability and corrosion resistance. As a modular system constructed from bolted panels, it provides a practical way to store water for municipal, commercial, industrial and firefighting applications. The sectional design simplifies transportation and onsite assembly, allowing tanks to be configured in square, rectangular or round layouts to match site constraints and capacity requirements. Options for internal and external accessories—available in hot-dip galvanized or stainless steel—allow specification for potable water or engineered process demands.

Core Structure and Materials

This sectional Galvanized Steel Water Tank comprises five principal components: SMC pressed panels, connection bolts & nuts, internal accessories, external accessories, and a C-channel base or alternate foundation. Panels are manufactured from carbon steel plate and protected by a zinc coating applied through the hot-dip galvanizing process. The zinc layer provides galvanic protection and a durable barrier against corrosion in a wide variety of environments. Where contact with potable water is required, internal accessories can be supplied in stainless steel (SS304 or SS316) to meet hygiene and longevity requirements.

Modular Panel System

Standard modular panels come in several sizes—1220×1220 mm, 1000×1000 mm, 1000×500 mm and 500×500 mm—enabling flexible layout decisions. Panel thickness is selected based on final tank height and expected loads (see parameter table). Panels are pressed for rigidity and connected using hot-dip galvanized or stainless steel bolts, nuts and washers. Gaskets and food-grade sealing belts (EPDM or silicone) form watertight joints between panels.

Performance Characteristics

The HDG panel material meets recognized mechanical criteria: tensile strength in the range of approximately 340–450 MPa, yield around 210–225 MPa and elongation of 28–32% under GB/T standards listed. These properties ensure sufficient ductility and strength to withstand hydraulic loads, thermal cycles and installation stresses typical for water storage applications. Hot dip galvanizing substantially extends service life by reducing corrosion rates compared with bare carbon steel.

Installation and Assembly

The sectional Galvanized Steel Water Storage Tank is designed for simple, rapid assembly using standard tools. Key installation steps include foundation preparation (concrete pad or U-steel/C-channel base), panel erection, bolting and sealing, accessory installation (inlets, outlets, flanges, overflow, drainage) and inspection. Bolts, nuts and washers are hot-dip galvanized or stainless steel, matching the selected accessory specification. Typical onsite installation teams can erect tanks with predictable man-hours per cubic meter due to the repeatable modular process.

Foundation Options

Foundations may be a reinforced concrete pad or a steel bottom base constructed from C-channel sections. Choice depends on site conditions, load distribution needs and permanence. A properly engineered foundation ensures panel alignment, minimizes differential settlement and supports safe long-term operation of the tank.

Accessories and Customization

Accessories are integral to a functional water storage system and are available in different materials depending on application: hot-dip galvanized carbon steel for general use, or stainless steel (SS304/SS316) for potable water or corrosive process media. Accessories include:

• Panels (various panel sizes and thicknesses)
• Bolts, nuts and washers (hot-dip galvanized or SS304/SS316)
• Base steel (C-channel 10# or 12#, hot-dip galvanized or painted)
• Internal support rods and tie-rods (hot-dip galvanized or stainless)
• Flanges for drainage, inlet and overflow (galvanized or stainless)
• Food-grade sealing belts (white EPDM or silicone)
• Ladders for tanks above 1.5 m, water indicator (glass/brass or float type) and manhole covers (standard 600×600 mm or customized)

Applications and Use Cases

Sectional Galvanized Steel Water Tanks serve a broad range of applications where dependable water storage is required. Common use cases include:

• Municipal water storage and distribution balancing
• Firefighting water reservoirs and riser tanks
• Commercial and industrial process water storage
• Agricultural irrigation and aquaculture systems
• Temporary or permanent water supply for construction and remote sites

Because tanks can be configured in square, rectangular or round layouts and built to virtually any capacity by combining panels, they are especially suitable where site geometry or phased expansion matters. The modular approach also reduces logistical complexity compared with large one-piece tanks.

Target Beneficiaries

The Galvanized Steel Water Storage Tank is well suited for:

• Municipal utilities and water authorities seeking durable reserve storage
• Facility managers in commercial, hospitality and industrial sectors needing reliable on-site water reserves
• Fire protection planners requiring accessible, large-volume firefighting supplies
• Engineers and contractors specifying modular storage where fast installation and flexibility are priorities

Maintenance, Inspection & Safety

Routine maintenance for sectional galvanized tanks focuses on periodic inspection of seals, bolts and flanges, verification of zinc coating integrity, and checking internal accessories for signs of wear or corrosion. For potable systems, internal surfaces and fittings in stainless steel minimize contamination risk and simplify cleaning. Access provisions—manholes, ladders and indicators—are provided for safe inspection and servicing. Adherence to local codes for access, overflow protection and backflow prevention is necessary for compliance and safe operation.

Advantages and Value Proposition

Key advantages of a Hot Dip Galvanized Water Tank / Galvanized Steel Water Storage Tank include:

• Corrosion resistance: Zinc coating from the hot-dip galvanizing process significantly reduces corrosion rates compared with uncoated carbon steel.
• Modularity: Sectional panels enable flexibility in capacity, shape and phased expansion while simplifying transport and installation.
• Specifiable hygiene: Stainless internal accessories for potable applications ensure compliance with water quality requirements.
• Cost-effectiveness: Bolted assembly and standardized components reduce onsite labor and lower replacement costs over the lifecycle.
• Versatility: Suitable for firefighting reserves, municipal supply, industrial processes, agriculture and more.

Standards and Material References

Panels and materials reference widely accepted standards to ensure predictability in mechanical performance and interchangeability: GB/T 2518-2008 for panel properties and GB T 700 Q235B equivalent classifications. Equivalent international material grades include ASTM 36, S235JR, SS400 and GOST 380 where applicable. These references support engineering assessments, specification alignment and regulatory compliance planning.

Specification Guidance and Ordering

When specifying a sectional Galvanized Steel Water Storage Tank, consider these questions to refine the solution:

1. What is the required storage capacity and preferred tank footprint (square, rectangular, round)?
2. What tank height is required? (Panel thickness selection follows the height as per provided table.)
3. Is the application potable water or non-potable? (This determines whether internal accessories should be stainless steel.)
4. What foundation type is feasible on site—concrete pad or a steel base?
5. What accessories are required—manhole, ladder, water indicator, flanges, overflow and drainage connections?

Providing answers to these items will allow engineers and suppliers to produce precise drawings, material lists and installation schedules. The modular nature of the system supports customization without departing from proven panel, bolt and seal technologies.

Summary

The Sectional Galvanized Steel Water Tank is a robust, adaptable storage solution that balances corrosion resistance, modularity and cost efficiency. With hot-dip galvanized panels, selectable panel thickness based on height, and a variety of accessory materials, the system is engineered for a wide range of water storage needs—municipal, industrial, firefighting and agricultural. Thoughtful selection of foundation type and accessory materials ensures long-term performance and compliance with application-specific requirements. For projects demanding reliable, configurable water storage with predictable installation processes, this HDG pressed steel tank is a practical choice.
