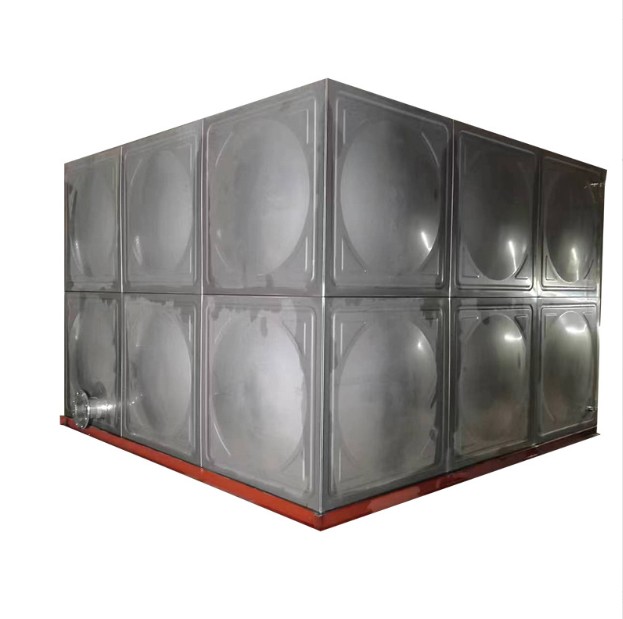

Bolted Connection Stainless Steel Panel Sectional Water Tank

Overview

A Bolted Connection Stainless Steel Panel Sectional Water Tank is a modular, panel-based potable water storage solution engineered for durability, hygiene and flexible installation. Constructed from high-quality stainless steel panels connected with bolted joints, this tank type combines corrosion resistance with straightforward on-site assembly, making it suitable for residential, commercial and industrial water storage requirements.

Design, Components and Construction

The sectional tank is built from prefabricated stainless steel panels that form the bottom, walls and roof, together with manhole panels for access. Internal and external fittings are supplied to complete a sanitary, structurally sound assembly without the need for large-scale welding on site. Key component groups include:

• Panels: Bottom panel, wall panels, roof panel and manhole panels manufactured from stainless steel with precision stamping for corner fittings and joint faces.
• Internal parts: Internal ladder, tie-piece rods, internal supports, flanges and sanitary rubber gaskets to maintain water quality and structural integrity.
• External parts: External ladders, angle irons, tie-piece plates, bolts and nuts designed for reliable bolted connections and easy maintenance.
• U-steel base: A supporting base that can be supplied painted, hot-dip galvanized or in stainless steel to suit site conditions and corrosion requirements.

Material Options and Corrosion Resistance

Panel materials commonly include stainless steel grades 304 and 316. 304 stainless provides excellent general corrosion resistance and is appropriate for most potable and service water applications. Grade 316 offers enhanced resistance in chloride-rich or aggressive environments. The stainless steel stamping and polished corner plates reduce dirt accumulation and simplify cleaning, supporting a hygienic water storage environment.

Advantages and Engineering Benefits

Bolted Connection Stainless Steel Panel Sectional Water Tanks deliver a balance of performance, economy and lifecycle benefits. Their modular design and robust materials provide notable advantages over monolithic or FRP tanks:

1. Superior material quality: Stainless steel panels are durable, non-reactive and easy to sanitize, reducing the risk of bacterial growth and preserving water quality.
2. Improved pressure distribution: Precision-pressed panels and uniform tie-piece arrangements create even stress distribution, increasing overall structural stability under full load.
3. Ease of installation: Standard stamped panels and bolted connections enable on-site assembly without specialized lifting equipment or extensive welding crews.
4. Long service life: High-temperature mechanical pressing and quality stainless steel construction contribute to a service life in excess of 20 years when properly maintained.
5. Environmental sustainability: Stainless steel is 100% recyclable, allowing end-of-life materials to be recovered and reused, reducing waste and embodied environmental impact.

Operational and Maintenance Considerations

Routine inspection of bolted joints, rubber gaskets and internal surfaces is vital to ensure long-term performance. Cleaning access is facilitated by manholes and polished panel joints that minimize contamination points. Replacement of external fasteners or gaskets is straightforward due to the bolted modular design, minimizing downtime. Proper foundation preparation and a compatible U-steel base selection are essential to maintain tank flatness and avoid point loads.

Applications and Target Users

The modular bolted stainless steel panel tank is versatile across numerous sectors. Typical applications include:

• Potable water storage for residential complexes, commercial buildings and municipal systems.
• Agricultural irrigation reservoirs and well-water holding tanks.
• Septic and sewage buffer tanks where stainless internals resist corrosion and biofouling.
• Fire reserve, process water, chiller water and cooling tower balance tanks in industrial facilities.
• Rainwater harvesting, reverse-osmosis storage and desalination-related holding tanks.
• Hot water storage and certain chemical storage applications when compatible with stainless steel.

Primary beneficiaries include building services engineers, water utility managers, facility owners seeking long-term hygienic storage solutions, agricultural operators, and industrial process technicians who require clean, durable, and adaptable water storage systems.

Design Flexibility and Customization

Because panels are modular, tank geometry and capacity can be tailored on-site to fit available footprints and volume requirements. Configurations range from compact below-deck assemblies to large above-ground reservoirs. Accessories such as internal ladders, level indicators, manways, inlet/outlet arrangements and service platforms can be integrated during assembly to match operational needs.

Quality Assurance and Compliance

Manufacture and assembly practices follow recognized standards for potable water containment and structural safety. Material traceability, weld quality for factory-made joints, and certified fasteners contribute to a traceable supply chain and verifiable installation. Inspections and validation during handover ensure the tank meets project-specific performance and sanitary requirements.

Conclusion

A Bolted Connection Stainless Steel Panel Sectional Water Tank offers a reliable, hygienic and flexible approach to water storage. With quality 304/316 stainless steel panels, thoughtfully engineered bolted connections, and modular construction, this solution suits a wide range of potable and process water applications while delivering low life-cycle costs and strong environmental credentials.
