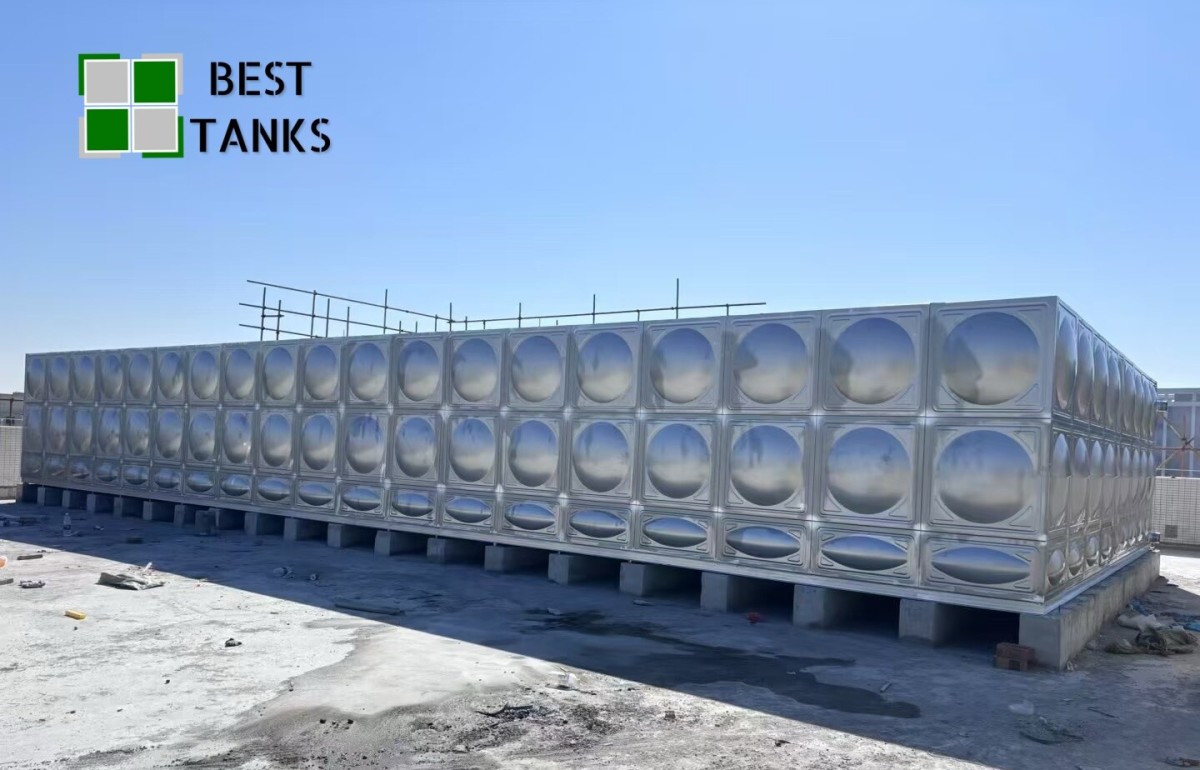

Stainless Steel Hot Pressed Panel Water Tank

Overview and Design Principles

The stainless steel hot pressed panel water tank is a modular, bolted-panel water storage solution engineered for reliable potable water storage, process water, rainwater harvesting, fire reserve, and a broad range of industrial and municipal applications. Using precision-stamped panels formed under high temperature and pressure, this design prioritizes structural uniformity, sanitary surfaces, and ease of field assembly. The materials and construction minimize corrosion, biological growth, and leaching, ensuring stored water quality remains stable over long service cycles.

Construction & Components

The tank is composed of distinct element groups that together deliver mechanical strength, hydraulic integrity and maintainable access. Panels are hot-pressed to achieve tight tolerances and consistent geometry. Fastening is accomplished with high-strength bolts and stainless nuts to maintain both water tightness and the ability to disassemble for relocation or refurbishment.

Component Breakdown

Advantages and Material Benefits

Choosing a stainless steel water tank offers a combination of hygiene, durability and long-term lifecycle value. Panels constructed from grade 304 or 316 stainless steels resist corrosion in common potable and many industrial environments. The hot-pressed panel manufacturing method enhances panel flatness and corner integrity, resulting in improved pressure distribution and a watertight assembly without reliance on continuous on-site welding.

• Better raw material: precision stamped corner plates and polishable surfaces prevent dirt accumulation and facilitate cleaning.
• Improved structural pressure handling due to uniform tension distribution in the assembled box.
• Simpler installation: standard panels bolt together on site; no heavy lifting or specialized welding required for most assemblies.
• Long service life: high-temperature hot pressing and robust stainless alloys deliver a service expectation typically exceeding two decades under normal conditions.

Typical Applications and Target Users

The modular stainless steel water tank fits contexts that demand reliable water quality, adaptability and low maintenance. Municipal water utilities, commercial facilities, food and beverage processors, hospitality properties, agricultural operations and remote construction sites benefit from the hygienic surface and modular logistics. Specific use cases include potable water storage, rainwater harvesting, fire reserve tanks, hot water storage, cooling tower makes-up tanks, reverse-osmosis buffer tanks and various industrial process water uses.

1. Potable water storage for residential, commercial and institutional buildings.
2. Agricultural irrigation and livestock water systems where corrosion resistance is required.
3. Industrial process tanks, including chiller and cooling systems.
4. Temporary or mobile installations that require rapid assembly and later relocation.

Installation, Maintenance & Compliance

Installation is performed by bolting stamped panels to the prepared base, applying certified rubber gaskets at joints and installing internal bracing and access fittings. The modular approach makes inspections straightforward: panels can be individually replaced if damaged, and manholes provide full internal access for cleaning and disinfection. Routine maintenance focuses on verifying fastener torque, inspecting seals and ensuring drainage around the base to prevent external corrosion of non-stainless subcomponents.

Because stainless steel is inert relative to most potable water chemistries, the tank typically meets sanitary standards when fabricated and maintained correctly. Users should follow local drinking water regulations and perform scheduled microbiological testing when the tank supplies potable water.

Sustainability and End-of-Life

Stainless steel is fully recyclable, which reduces lifecycle environmental impact. At end-of-life the panels and metalwork can be recovered and reprocessed, supporting circular material flows and minimizing waste compared with some polymer or composite alternatives.

Selecting the Right Tank

When specifying a stainless steel water tank, consider service temperature, chemical exposure, site access for panel delivery and the required fittings for pumps, overflow, vents and instrumentation. For seawater or highly chlorinated environments, select higher alloy grades (such as 316) and ensure appropriate sacrificial or protective measures for non-stainless components.

In summary, the hot-pressed panel modular stainless steel water tank provides a hygienic, durable and adaptable water storage solution for stakeholders who prioritize water quality, maintainability and long-term value. Its modular nature reduces installation complexity while delivering reliable performance across residential, commercial and industrial settings.
